30-second GOES-19 images of severe thunderstorms in Texas, Oklahoma and Arkansas

By Scott Bachmeier •

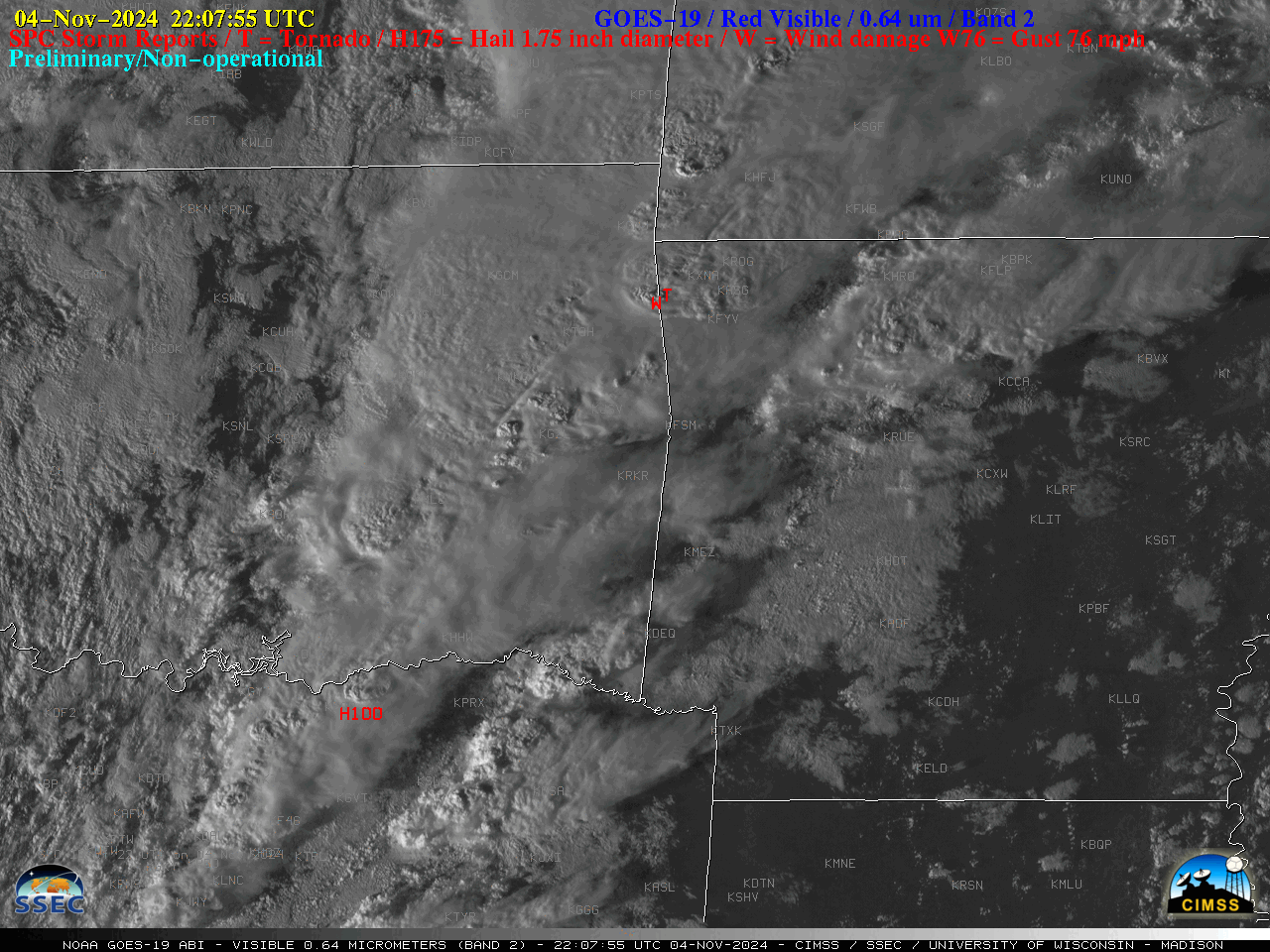

30-second GOES-19 “Red” Visible (0.64 µm) images with time-matched (+/- 3 minutes) SPC Storm Reports plotted in red, from 1800-2303 UTC on 04 November [click to play animated GIF | MP4]

Overlapping 1-minute Mesoscale Domain Sectors provided 30-second interval GOES-19 (Preliminary/Non-operational) “Red” Visible (0.64 µm) images (above) — which showed thunderstorms that produced hail to 1.75″ in diameter, wind gusts to 94 mph and several tornadoes (SPC Storm Reports) across parts of North Texas. eastern Oklahoma and far northwestern Arkansas on 04 November 2024.

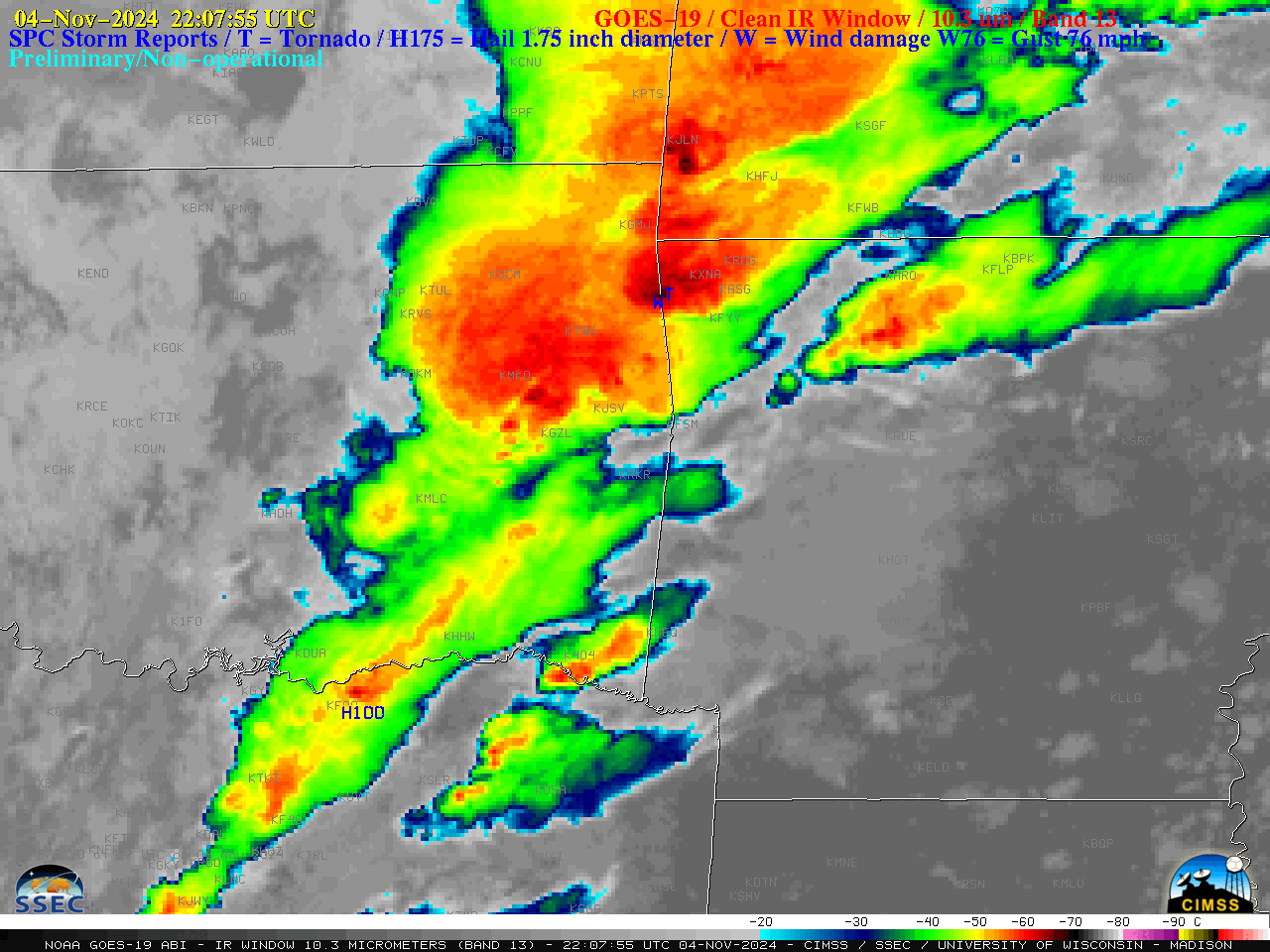

The corresponding 30-second GOES-19 “Clean” Infrared Window (10.3 µm) images are shown below. The coldest cloud-top infrared brightness temperatures associated with some these thunderstorms were -70 to -75ºC.

30-second GOES-19 “Clean” Infrared Window (10.3 µm) images with time-matched (+/- 3 minutes) SPC Storm Reports plotted in blue, from 1800-2303 UTC on 04 November [click to play animated GIF | MP4]

Categories: GOES-19, Severe convection
