12 January 1998 -- GOES-8 water vapor animation (Java applet)

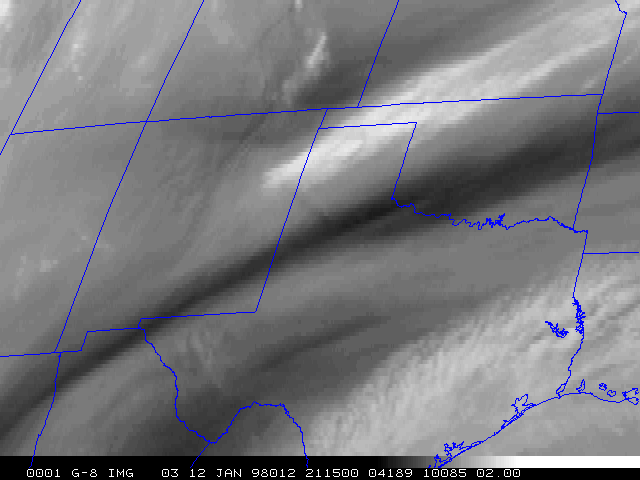

12-13 January 1998 -- GOES-8 6.7 Micrometer IR ("Water Vapor")
Arctic Cold Front Moves South Across Texas Panhandle Region

Surface wind barbs show that the flow becomes northeasterly behind the cold front. The thin dark (warm/dry) band that moves south-southwestward along with the surface cold front is a mid-tropospheric "gravity wave" which follows the motion of the relatively shallow Arctic cold front at the surface.

Back to 12 January 1998 page
